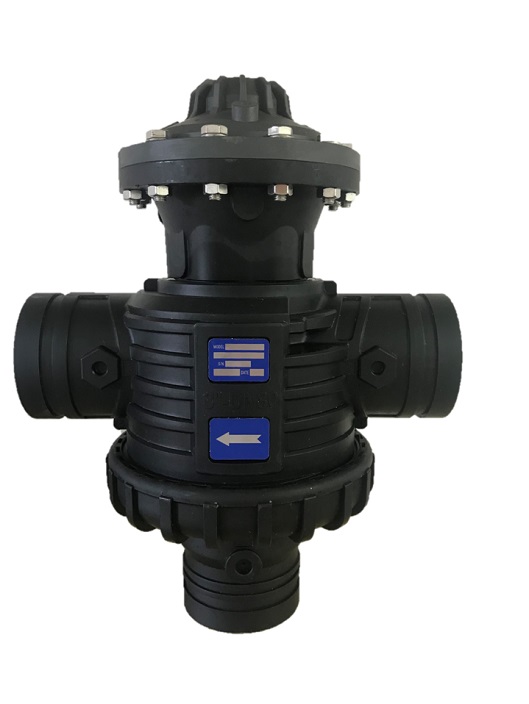

We are proud to announce for the release of our new 3″ Back-Wash Valve. It is a compact 3-port valve, double chambered, hydraulically operated, and diaphragm actuated. Designed for automatic back-washing of filtration systems.
Technical Data:
| Maximum working pressure | 16 Bar (232 psi) |
| Minimum opening pressure | 1 Bar (14.5 psi) |
| Maximum Working Temperature | 60 °C (140°F) |
| pH Range | 3 – 12 |
| Housing and Lid | Polyamide |
| Housing seal | NBR |
| Seat Valve | PVC |
Specifications:
| ITEM CODE | DESCRIPTION | MAXIMUM FLOW RATE | KV | SIZE | WEIGHT |
| BF 3X3-S | 3″ Back-wash valve, straight flow | 50m³/h | Straight flow: 90 Backwash flow: 120 |
378x287x192 mm | 6.0kg |

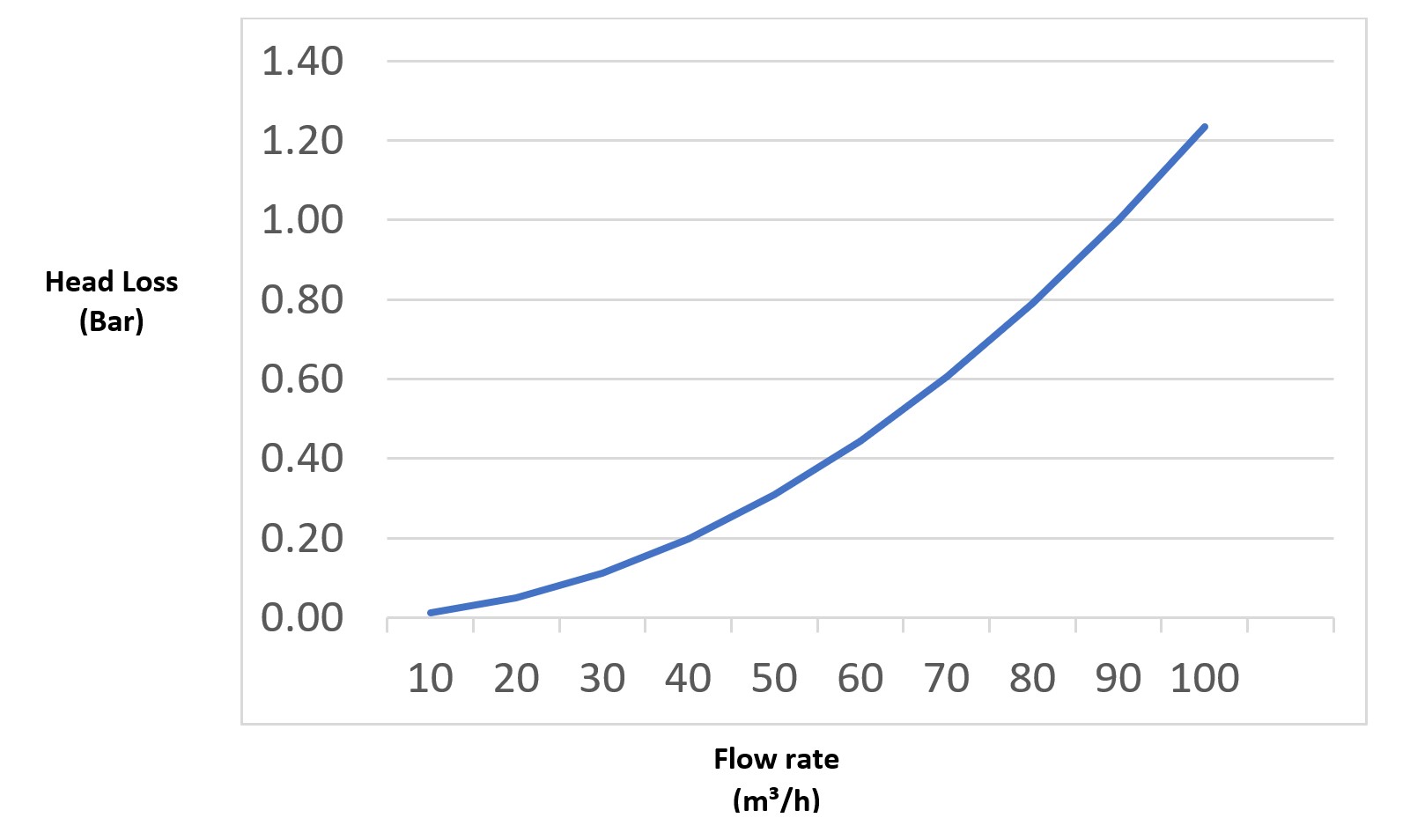

Straight flow – head loss chart:

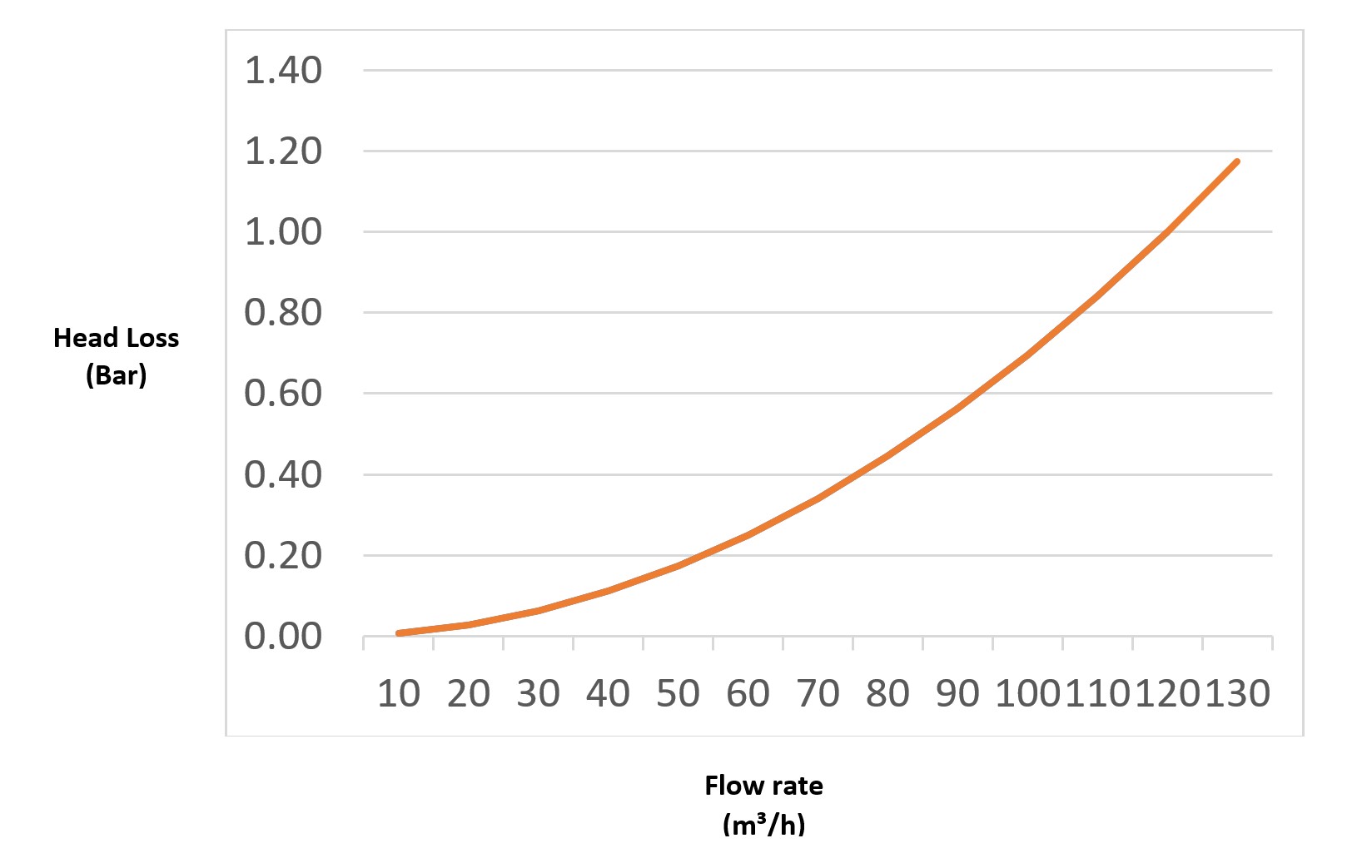

Backwash flow – head loss chart:
