Sand Separators

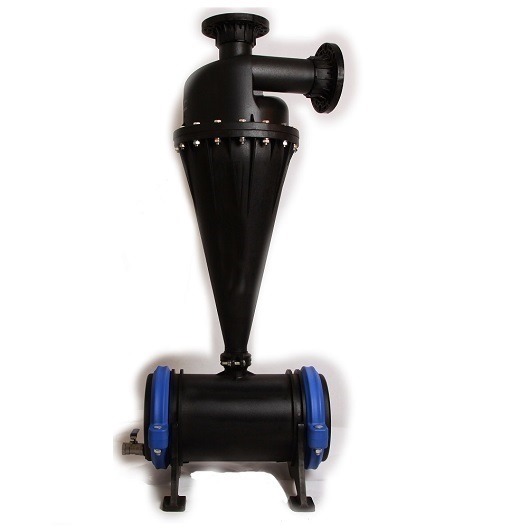

S.I. Sand Separator (Hydro cyclone) is a unique product which is made from Polyamide reinforced by Fiberglass.

The high accuracy of the centrifugal production increases the efficiency of trapping the sand particles in the

accumulation tank and results in high filtration efficiency.

Features and Benefits:

  • A pre-filtration solution for well water where sand capacity is higher than 50ppm
  • Filtration efficiency of more than 90%, separating 300 to 100 micron of sand particles
  • Sustainable solution, corrosion free and long lasting
  • Integrated valve for easy cleaning
  • High range of flow rate with very low head loss
  • Available in Universal Flange connection
General data

Maximum working pressure: 8 Bar (116 psi)

Maximum working temperature: 60ºC (140ºF)

pH Range: 3 – 12

Row materials

Filter housing and lid: Polyamide

Seals: NBR





Specifications:
Filter size  Connection options Accumulation tank Flow rate
2″ Universal Flange 16 liter  10 – 30 m³/h
3″  Universal Flange 16 liter 25 – 55 m³/h
4″  Universal Flange 27 liter  50 – 100 m³/h



System model A B C D E Gross Weight Package Volume
2″ 1,082 mm 960 mm  431 mm 490 mm  431 mm  13 kg 0.23 cbm
3″  1,228 mm  1,073 mm  431 mm 490 mm  431 mm 17.5 kg  0.23 cbm
4″  1,447 mm  1,262 mm  525 mm 570 mm  525 mm 28.5 kg 0.24 cbm
