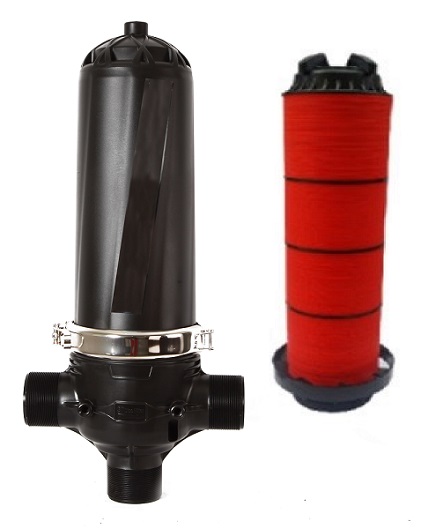

Manual T Disc Filter

Our manual T filter is the perfect solution for simple application or for big project where a secondary

filter is required at every irrigation block.  This sustainable and quality solution is available

from 2” to 3” and can be assembled with both Screen and Disc elements.

Features and Benefits:

  • Main filter for small irrigation projects with average water quality
  • Secondary filter to prevent dripper line clogging in where the water quality is poor
  • Sustainable solution, corrosion free and long lasting
  • Same filter can be assembled with Screen element or Disc element
  • No need for any tools to open the filter for cleaning
  • High range of flow rate with very low head loss
  • Available for any type of connection: BSP, NPT, Victaulic & Universal Flange
General data

maximum working pressure: 10 Bar (145 psi)

Maximum working temperature: 60ºC (140ºF)

pH Range: 3 – 12

Row materials

Filter housing and lid: Polypropylene

Seals: NBR

Filter discs: Polypropylene



Specifications:
Filter size  Connection options  Filtration grade  Filtration area  Maximum recommended flow rate
2″  BSP, NPT Flange, Victaulic 50µ, 80µ, 100µ, 130µ, 200µ, 420µ  1220cm²  30m³/h
2.5″  1220cm² 40m³/h
3″   1750cm²  50m³/h
Head loss @130 micron (120 mesh)
Filter size 10m³/h

(44 GPM)

20m³/h

(88 GPM)

30m³/h

(132 GPM)

40m³/h

(176 GPM)

50m³/h

(220 GPM)

60m³/h

(264 GPM)

2″ 0.03 Bar

(0.44 psi)

0.12 Bar

(1.74 psi)

0.22 Bar

(3.19 psi)

0.37 Bar

(5.36 psi)

2.5″ 0.025 Bar

(0.36 psi)

0.07 Bar

(1.02 psi)

0.15 Bar

(2.18 psi)

0.22 Bar

(3.19 psi)

0.32 Bar

(4.64 psi)

3″ 0.015 Bar

(0.22 psi)

0.05 Bar

(0.73 psi)

0.10 Bar

(1.45 psi)

0.15 Bar

(2.18 psi)

0.20 Bar

(2.9 psi)

0.28 Bar

(4.06 psi)

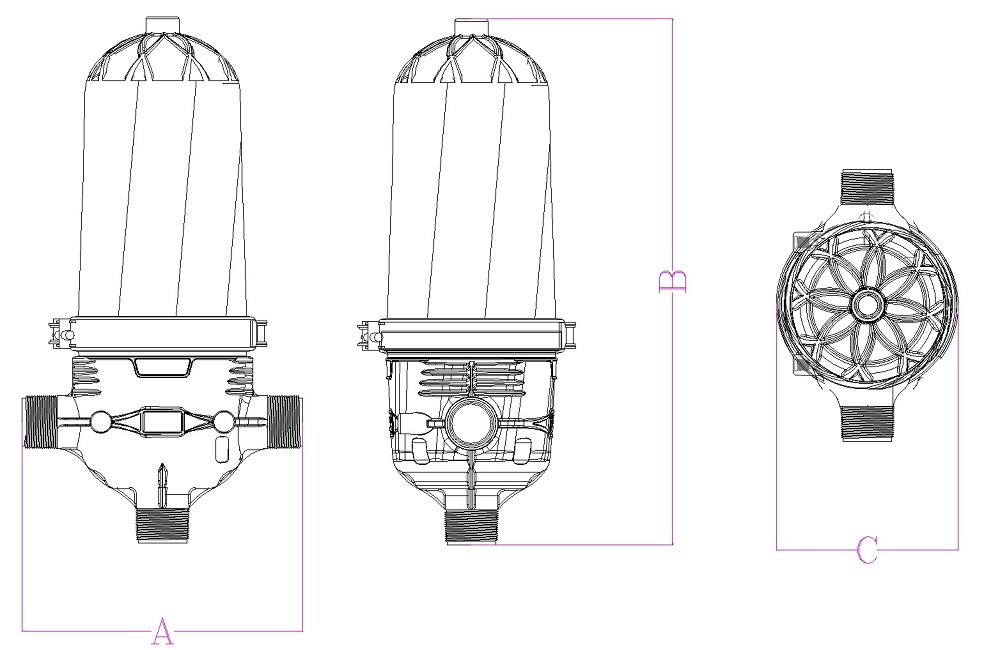

System model A B C Gross Weight Package Volume
2″  320 mm 600 mm 215 mm  6.4 kg  0.06 cbm
2.5″   320 mm 600 mm 215 mm 6.4 kg 0.06 cbm
3″  320 mm 750 mm  215 mm  7.6 kg 0.07 cbm
