Manual Twin Disc Filter
Our manual Twin filter is the perfect solution for simple application or for big project where
a secondary filter is required at every irrigation block. This sustainable and quality solution
is available from 2” to 4” and can be assembled with both Screen and Disc elements.
Features and Benefits:
- Main filter for small irrigation projects with average water quality
- Secondary filter to prevent dripper line clogging in where the water quality is poor
- Sustainable solution, corrosion free and long lasting
- Same filter can be assembled with Screen element or Disc element
- No need for any tools to open the filter for cleaning
- High range of flow rate with very low head loss
- Available for any type of connection: BSP, NPT, Victaulic & Universal Flange
General data
maximum working pressure: 10 Bar (145 psi)
Maximum working temperature: 60ºC (140ºF)
pH Range: 3 – 12
Row materials
Filter housing and lid: Polypropylene
Seals: NBR
Filter discs: Polypropylene
Specifications
| Filter size | Connection options | Filtration grade | Filtration area | Maximum recommended flow rate |
| 3″ | BSP, NPT Flange, Victaulic | 50µ, 80µ, 100µ, 130µ, 200µ, 420µ | 2450cm² | 50m³/h |
| 4″ Short | 2450cm² | 70m³/h | ||
| 4″ Large | 3512cm² | 100m³/h |
Head loss @130micron (120 mesh)
| Filter size | 10m³/h
(44 GPM) |
20m³/h
(88 GPM) |
30m³/h
(132 GPM) |
40m³/h
(176 GPM) |
50m³/h
(220 GPM) |
60m³/h
(264 GPM) |
70m³/h
(308 GPM) |
80m³/h
(352 GPM) |
90m³/h
(396 GPM) |
100m³/h
(440 GPM) |
| 3″ | 0.01 Bar (0.15 psi) |
0.04 Bar (0.58 psi) |
0.07 Bar
(1.02 psi) |
0.12 Bar
(1.74 psi) |
0.17 Bar
(2.47 psi) |
0.24 Bar
(3.48 psi) |
0.32 Bar
(4.64 psi) |
|||
| 4″ Short | 0.03 Bar (0.44 psi) |
0.05 Bar
(0.73 psi) |
0.09 Bar
(1.30 psi) |
0.14 Bar
(2.03 psi) |
0.20 Bar
(2.9 psi) |
0.27 Bar
(3.92 psi) |
0.35 Bar
(5.08 psi) |
|||
| 4″ Large | 0.01 Bar (0.15 psi) |
0.03 Bar
(0.44 psi) |
0.05 Bar
(0.73 psi) |
0.07 Bar
(1.02 psi) |
0.09 Bar
(1.30 psi) |
0.12 Bar
(1.74 psi) |
0.15 Bar
(2.18 psi) |
0.18 Bar
(2.61 psi) |
0.22 Bar
(3.19 psi) |

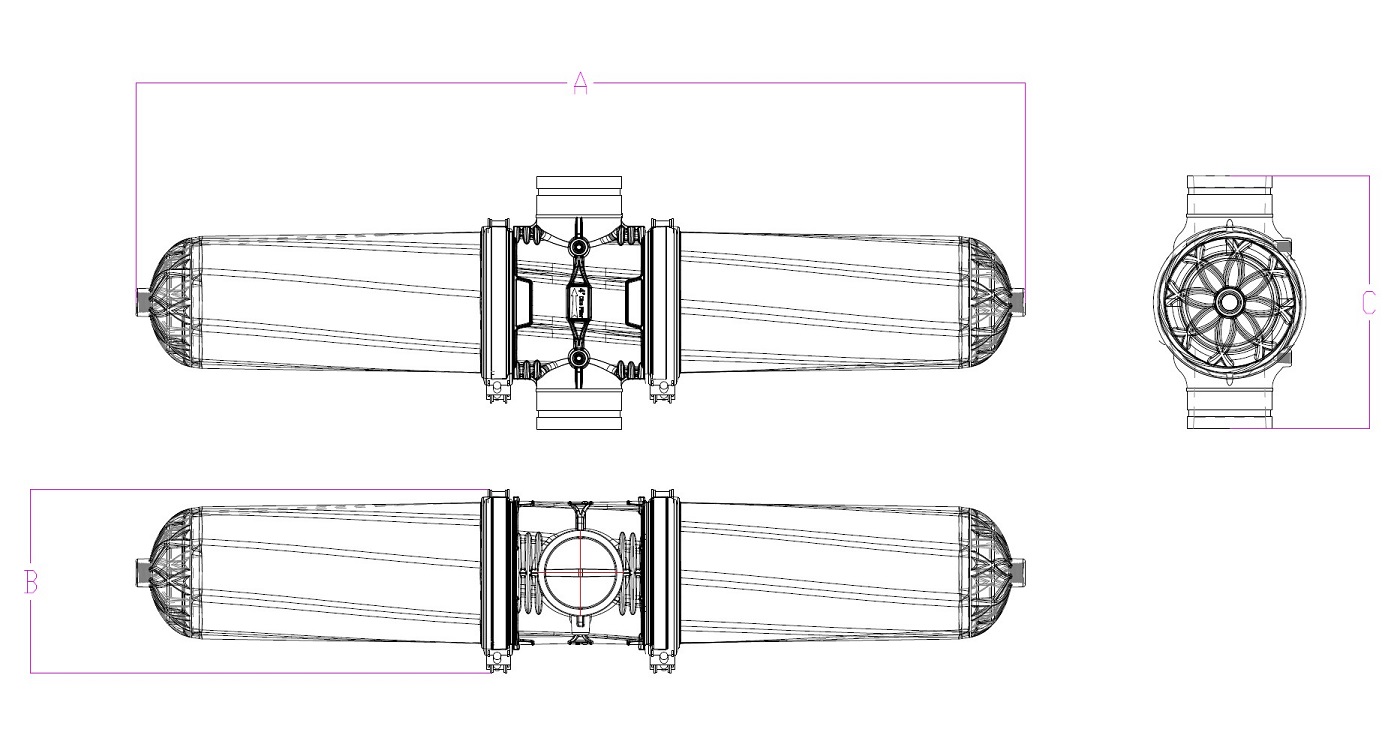

| System model | A | B | C | Gross Weight | Package Volume |
| 3″ | 976 mm | 240 mm | 340 mm | 9.0 kg | 0.08 cbm |
| 4″ Short | 976 mm | 240 mm | 340 mm | 9.4 kg | 0.08 cbm |
| 4″ Large | 1,200 mm | 240 mm | 340 mm | 11.7 kg | 0.11 cbm |
